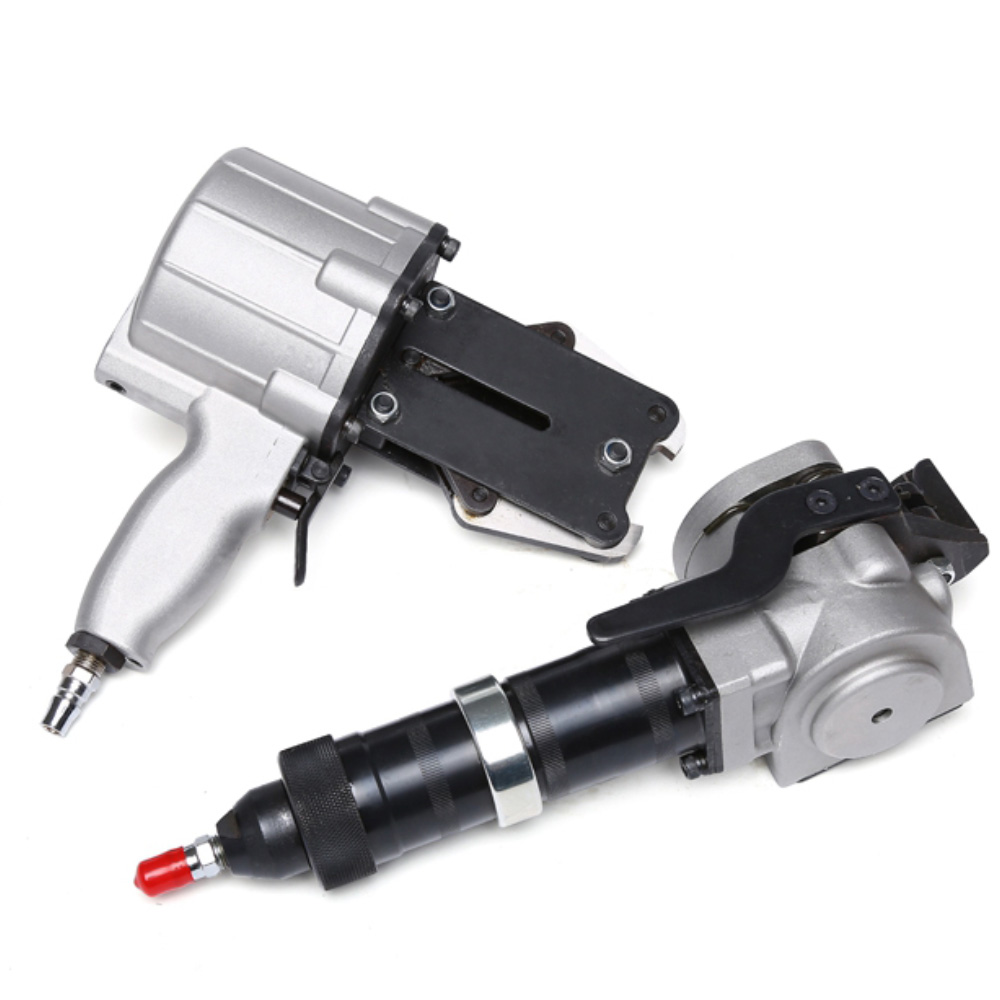

AIR DUO32 pneumatic steel tensioner & padlock

13% RABATT

AIR DUO32 pneumatic steel tensioner price

Sendes fra EU-lager • Estimert levering: 3-7 dager

Variation SKUs: 120450, 120451, 120452

Opprinnelig pris var: 1.600 €.Nåværende pris er: 1.399 €.

Pris ekskl. MVA

Legg i handlekurv Få tilbud

🔒 Sikker kasse • PCI‑DSS-kompatibel

RASK LEVERING

100 % PENGENE TILBAKE-GARANTI LEVERING

30+ ÅRS ERFARING

LEVERING

FOR BATTERI-SPENNVERKTØY OG SETT

🛡️ Ett års EU-garanti

🛠️ Pneumatic Operation

⚙️ Steel Strap Compatible

🛡️ Integrated Padlock

Produktnummer

strap-width

Pris

Mengderabatter

Antall

Handlinger

120450

19mm

3+	6+	11+
3% RABATT	5% RABATT	7% RABATT

120451

25mm

3+	6+	11+
3% RABATT	5% RABATT	7% RABATT

Available with 30% deposit. Estimated delivery: 14 days.

120452

32mm

3+	6+	11+
3% RABATT	5% RABATT	7% RABATT

Beskrivelse

AIR DUO32 pneumatic steel tensioner & padlock

Pneumatic Steel Strapping Tensioner and Padlock Tool AIR DUO32 are the latest designs in the steel packing area. All operations are air-powered. The packing operations as a whole consist of tensioner and breaking. In order to perform strapping pneumatic steel tensioner and padlock tool must be used together. They combine the advantages of a lightweight, simplicity of operation, quickly packing, safe to use, easy to move. Pneumatic tools for steel strapping can be used for packing different materials such as a crate, tubular products, steel, rebar, ingot, and large article. They are ideal tools for packing heavy objects, various shapes, and sharp edges.

Advantages of AIR DUO32 pneumatic steel tensioner & padlock

High tension force – up to 16800 KN (adjustable)
All-metal structure: Made of high-quality steel, durable
Split design: brings more flexible operating space
Super large bundle force: suitable for steel strips with a width of 19-32mm and a thickness of 0.8-1.2mm, with strong binding and excellent results
Applicable to various metals, building materials, large and heavy goods, etc.

AIR DUO32 pneumatic steel tensioner & padlock specifications

Model No.	AIR DUO32 pneumatic steel tensioner & padlock
Steel Strap Width	19-32mm
Steel Strap Thickness	0.8-1.2mm
Air Pressure	0.4-0.6Mpa
Seal Type	Single Strapping Buckles
Tension Force	≥16.8 KN
Weight	5.0 KGS

Features of AIR DUO32 pneumatic steel tensioner & padlock

Easy to use, light host weight, high safety performance.
Free of fatigue patent design, safe to use.
The high degree of automation, convenient to move, suitable for all kinds of fields and all kinds of package sizes.
The body and parts of the item are made of high-strength alloy, high durability.
High tensioning force results in high connection reliability.

How to use AIR DUO32 pneumatic steel tensioner & padlock

The strap must be put through a seal, around the package, and then through the seal again. Bend strap away from the seal at about 50mm.
Hold the tool body, press the handle with the thumb, insert the top strap (which is in the seal) into the tightening wheel and idler wheel, and then release the handle.
The end of the motor, rotating ring, with three grades (stop, semi-operate, operate). Turn the rotation ring clockwise and the tightening process will start. When the required strap tension is reached stop the tightening process.
Place pneumatic sealer on the seal, press switch handles to form the joint.
When the joint is completed, tilt the pneumatic sealer up vertical position until the strap cuts.

AIR DUO32 pneumatic steel tensioner & padlock video

Tilleggsinformasjon

Vekt	15 kg
Dimensjoner	I/A
Strap width	19mm, 25mm, 32mm

Parameter	Specification
Model No.	AIR DUO32 pneumatic steel tensioner & padlock
Steel Strap Width	19-32mm
Steel Strap Thickness	0.8-1.2mm
Air Pressure	0.4-0.6Mpa
Seal Type	Single Strapping Buckles
Tension Force	≥16.8 KN
Weight	5.0 KGS

What strap widths are compatible with the AIR DUO32 pneumatic steel tensioner?

It supports steel strap widths ranging from 19mm to 32mm.

What is the maximum tension force the AIR DUO32 can apply?

The tensioner can apply a tension force of at least 16.8 kN.

Is the AIR DUO32 suitable for heavy-duty industrial applications?

Yes, its high tensioning force and durable alloy construction make it ideal for heavy-duty use.

What materials are used in the construction of the AIR DUO32?

It is made from high-strength alloy, ensuring durability and long service life.

Can the AIR DUO32 be used for different package sizes?

Yes, it is designed to handle all kinds of package sizes efficiently.

Is the AIR DUO32 easy to move and operate on-site?

Yes, it is lightweight and highly automated, making it convenient to move and use.

What safety features does the AIR DUO32 offer?

It provides high safety performance through reliable tensioning and secure padlock integration.

What strap thicknesses work with this tensioner?

It supports steel strap thicknesses between 0.8mm and 1.2mm.

Does the AIR DUO32 improve packaging efficiency?

Yes, its pneumatic operation and automation significantly speed up strapping processes.

Sammendrag

Steel Strap Width: 19-32mm
Steel Strap Thickness: 0.8-1.2mm
Tension Force: ≥16.8 KN
Easy to use, lightweight, high safety performance
The high degree of automation, convenient to move, suitable for all kinds of fields and all kinds of package sizes
The body and parts of the item are made of high-strength alloy, high durability
High tensioning force results in high connection reliability
